知识产权名称：新型酸循环电池连接器

实用新型专利

专利号：ZL201220046434.1

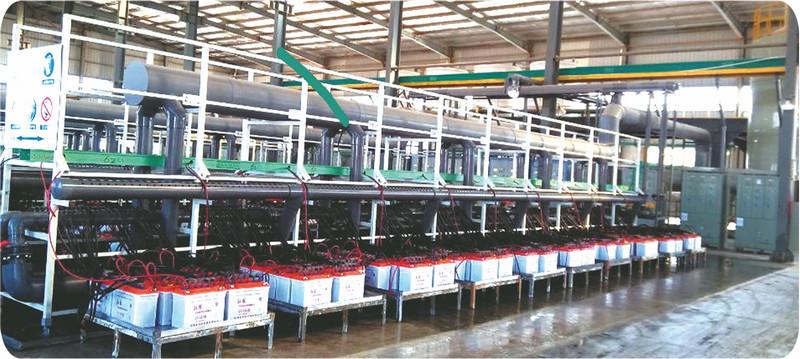

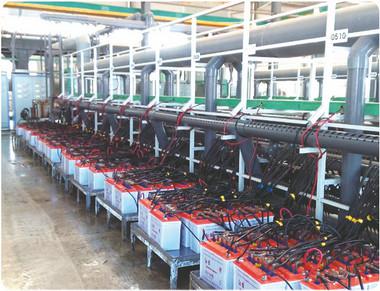

系统用途：用于富液式铅蓄电池化成。 Application: for the formation of Flooded Lead Acid battery 系统组成：酸液输送系统，酸液储存系统，酸液过滤及降温系统，电池连接系统，外部降温系统（含冷却水塔），温度监测仪，液位监测仪，管路及支架，初级除酸雾系统，电气控制系统等。 Composition: acid circulation module acid storage module, acid cleaning and cooling module, external cooling system (with water cooling tower), temperature monitor, acid level monitor, scrubber, electrical control module



性能特点：

1、 化成时间缩短超过50%；

2、 化成效果好，电池一致性高；

3、 生产成本降低10%；

4、 提高充电工序的生产效率；

5、 易于引入全面生产管理模式；

6、 环保：无废酸、废水，酸雾排放符合国家标准；

7、 操作简单、无须接触酸液、无酸雾、干净、易于控制；

Characteristics:

1. save formation cycle time, more than 50%

2. increased performance and improved battery quality

3. reduce the production cost by 10%

4. increase the productivity of the charging process

5. easy to introduce the total productive management method

6. environmental protection: no waste acid, no waste water, the emission of the acid fog is up to the national standard

7. easy to operate and make the workman happy, for: no acid contact, no acid fog, clean and easy control

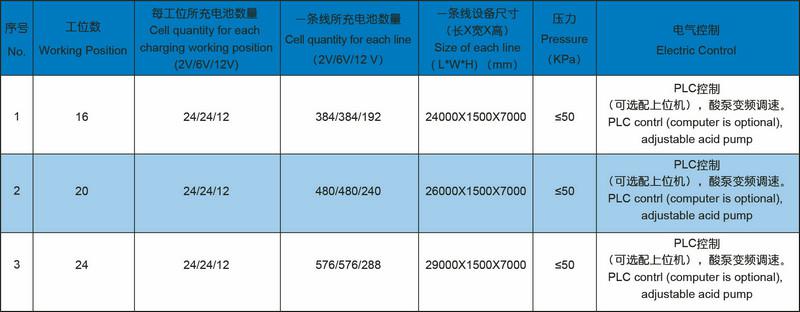

技术参数：Technical Parameters:

酸循环系统，型号：SXH-Ⅱ Model：SXH-Ⅱ

注Remarks

1、2V电池采用单格酸循环方式；2V Battery: One cell, one acid circulation loop.

2、6V/12 V电池采用三格串联酸循环方式；6V/12V Battery: One cell, two acid circulation loop.

3、电解液密度人工检测，手控配酸；Electrolyte density is tested by manual, Acid Preparation is manually control.

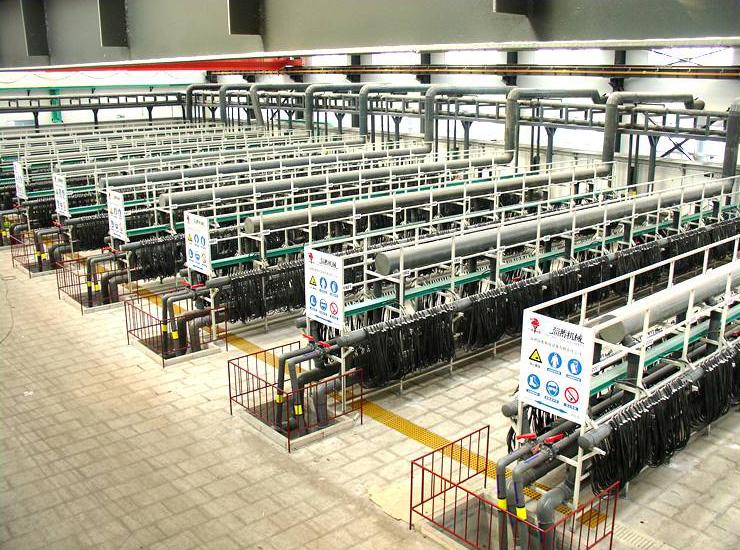

4、设备安装需要制作二层平台及地坑，地坑及设备安装地面做耐酸防腐处理。Whole system need a second floor platform and floor pit. Plant floor need to do anti-acid corrosion treatment.
