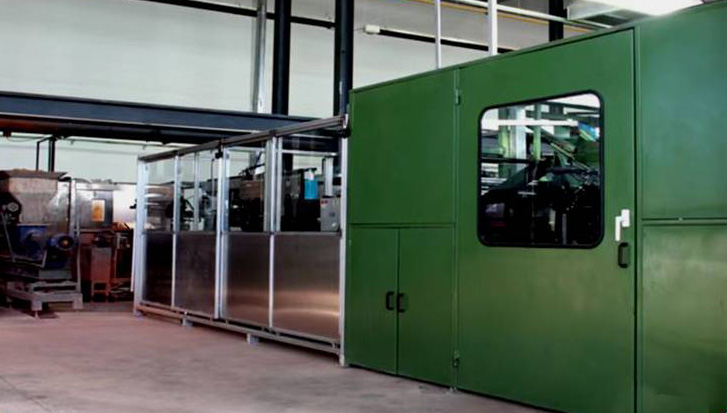

正板栅自动生产线

发布时间:2016-09-27 08:06:23
正板栅自动生产线

设备用途

    适用于管式铅酸蓄电池正板栅生产。能实现从加合金铅锭、板栅压铸、板栅取出、喷脱模剂、板栅存放、板栅裁切、板栅插入涤纶排管自动化生产。板栅裁切后的废料经粉碎后自动输送至熔铅炉,重复利用。

Application:

    It is used to produce the positive spine of the tubular lead acid battery. It can realize the adding lead ingot into lead pot, casting the spines, taking out the spines, spraying mould release agent, storing the spines, cutting the spines, inserting spines into gauntlets automatically. After spine cutting, the wasted spine will be crushed and conveyed to lead pot for recycle use.

设备构成

    ZBX-Ⅰ型,包含自动加铅锭机、正板栅压铸机、自动取板机、自动喷模装置、断筋检测装置、电气控制系统,板栅压铸模。另配独立剪切机、剪切刀。

    ZBX-Ⅱ型,包含自动加铅锭机、正板栅压铸机、自动取板机、自动喷模装置、断筋检测装置、自动裁切和插管机、排管输送机、码垛机、废料粉碎机、板链输送机、电气控制系统,板栅压铸模,板栅裁切刀。

Machine Composition

    ZBX-I include automatic lead bar feeding machine, pressure die casting machine, automatic spine removal with robot arm, mould release agent spraying device, broken spines testing device, electronic control system, mould, semi-auto cutting machine and cutting knife.

    ZBX-II include automatic lead bar feeding machine, pressure die casting machine, automatic spine removal with robot arm, mould release agent spraying device, broken spines testing device, automatic cutting and sleeving machine, gauntlet feeding device, spine stacking device, wasted spine crushing device, spine conveyor, electronic control system, mould, cutting knife.

冷却水压:0.2-0.3MPa

压缩空气:0.4-0.6MPa

总功率:57kw,65kw

输送铅锭:25kg/条

Cooling water pressure: 0.2-0.3MPa

Compressed air: 0.4-0.6MPa

Total power: 57kw, 65kW

Delivery lead ingot: 25kg/bar
