自动酸循环电池化成设备PRODUCT SHOW

自动酸循环电池化成设备

发布时间:2016-09-29 09:20:32
自动酸循环电池化成设备

知识产权名称:富液式铅酸蓄电池内化成全自动酸循环设备

实用新型专利

专利号:ZL20132031665.9

知识产权名称:铅酸蓄电池内化成设备

实用新型专利

专利号:ZL201220384595.1

系统用途:用于富液式铅蓄电池化成。

Application: for the formation of flooded lead acid battery

系统组成:酸液储存装置,酸液输送、过滤及降温系统,电池连接系统,温度监测装置,液位监测装置,管路及支架,除酸雾系统,电气控制系统等。

Composition: acid preparation and storage module, acid recirculation module, acid cleaning and cooling module, temperature monitor, acid level monitor, scrubber, electrical control module



性能特点:

1、 化成时间缩短超过50%;

2、 化成效果好,电池一致性高;

3、 生产成本降低10%;

4、 提高充电工序的生产效率;

5、 易于引入全面生产管理模式;

6、 环保:无废酸、废水,酸雾排放符合国家标准;

7、 操作简单、无须接触酸液、无酸雾、干净、易于控制;

Characteristics:

1. save formation cycle time, more than 50%

2. increased performance and improved battery quality

3. reduce the production cost by 10%

4. increase the productivity of the charging process

5. easy to introduce the total productive management method

6. environmental protection: no waste acid, no waste water, the emission of the acid fog is up to the national standard

7. easy to operate and make the workman happy, for: no acid contact, no acid fog, clean and easy control



技术参数:Technical Parameters:

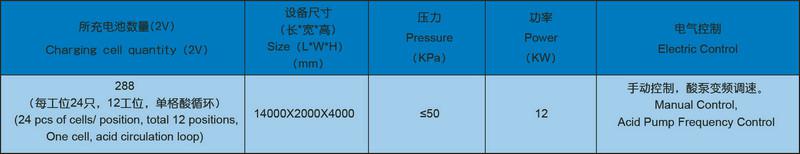

酸循环设备, 型号:SXH-Ⅰ Model:SXH-Ⅰ

注Remarks

1、电池采用单格酸循环方式;Battery: One cell, one acid circulation loop.

2、电解液密度人工检测,手控配酸;Electrolyte density is tested by manual, Acid Preparation is manually control.

3、可选配进口密度计自动检测电解液密度,自动配酸;Buyer could use exported electrolyte densimeter, which could test electrolyte density and do acid preparation automatically.

4、设备安装于平整地面上,地面做耐酸防腐处理。Equipment is located on plant floor. Plant floor need to do anti-acid corrosion treatment.

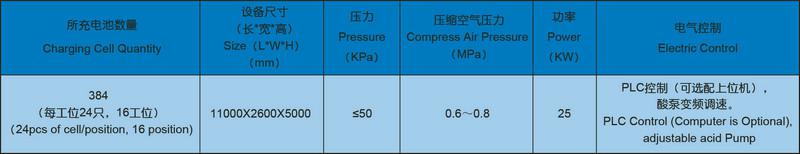

酸循环设备, 型号:SXH-Ⅲa Model:SXH-Ⅲa

注:Remarks

1、电池采用单格酸循环方式。One cell, one acid circulation loop.

2、电解液密度人工检测,手控配酸;Electrolyte density is tested by manual, Acid Preparation is manually control.

3、设备安装于平整地面上,地面做耐酸防腐处理。Equipment is located on plant floor. Plant floor need to do anti-acid corrosion treatment.

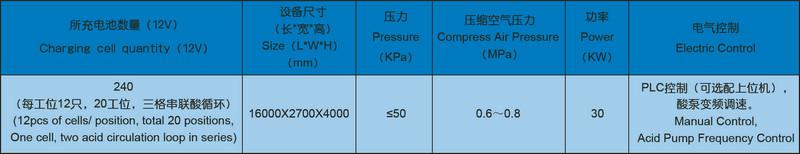

酸循环设备, 型号:SXH-Ⅲb Model:SXH-Ⅲb

注:Remarks

1、电池采用三格串联酸循环方式;One cell, two acid circulation loop in series.

2、电解液密度人工检测,手控配酸。Electrolyte density is tested by manual, Acid Preparation is manually control

3、设备安装于平整地面上,地面做耐酸防腐处理。Equipment is located on plant floor. Plant floor need to do anti-acid corrosion treatment.
