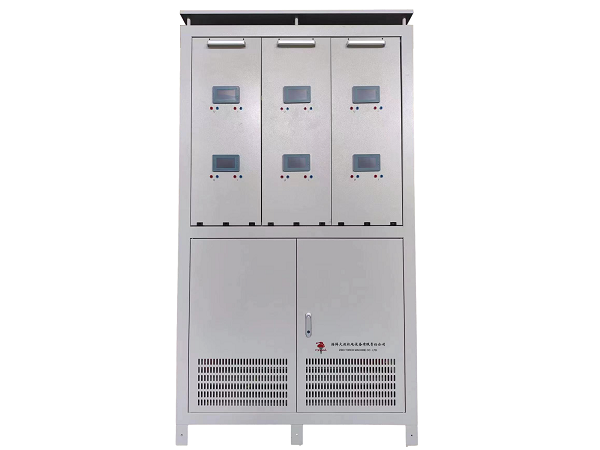

数控型电池化成用充放电机

Digital Type Battery Formation Charger and Discharger



一、设备用途及特点application and features

DKGCF系列是一种数字量控制调节型的蓄电池化成充、放电工艺用设备。所有控制参数均为数字量，无温度漂移变化。将电源、同步、数字PID、数字触发、脉冲变压器、现场工业总线通信模块集装成一体。该充电机采用数字集成电路控制，控制触发板集成度高、功能强、可靠性高。此设备的重要部件变压器采用高强度漆包线，耐高温达到H级绝缘等级，功率部件采用铝型材和大功率饼式可控硅元件。产品性能高，运行稳定可靠。

The DKGCF series is a digital controlled and adjustable charging and discharging equipment for battery formation,. All control parameters are digital and have no temperature drift changes. It integrates power supply, synchronization, digital PID, digital trigger, pulse transformer, and field industrial bus communication modules into one. The charger adopts digital integrated circuit control, with high integration, strong functionality, and high reliability of the control trigger board. The important component of this equipment, the transformer, is made of high-strength enameled wire, which can withstand high temperatures and reach the H-level insulation level. The power components are made of aluminum profiles and high-power pancake thyristor components. The product has high performance and stable and reliable operation.



二、设备构成composition

数控调节板、触摸屏、可控硅整流桥、变压器、电抗器、接触器、熔断器、散热风机等部件组成。It is composed of digital control board, touch screen, thyristor rectifier bridge, transformer, reactor, contactor, fuse, heat dissipation fan and other components.



三、功能参数parameters

1.控制方式：单机智能控制+上位机联网；Control method: single machine intelligent control+upper computer networking;

2.控制功能：稳压、稳流；Control function: voltage stabilization and current stabilization;

3.充、放电电流调节范围Imax×1%～Imax×100%，输出电流在标称电流10%～100%范围内，电流精度≤0.5% F.S；Charging and discharging current adjustment range Imax × 1% to Imax × 100%, output current within the range of 10% to 100% of nominal current, current accuracy ≤ 0.5% F.S;

4.设备充电输出电压调节范围（10%～100%）Vmax，在设备标称电压（10%～100%）调节范围内电压精度≤0.5%F.S；The adjustment range of device charging output voltage (10%~100%) Vmax, with a voltage accuracy of ≤ 0.5% F.S within the adjustment range of device nominal voltage (10%~100%);

5.采用触摸屏人机交互方式，显示直观，操作简洁，同时支持中文、英文界面，满足国内外市场需要；Adopting a touch screen HMI method, the display is intuitive and the operation is simple, while supporting Chinese and English interfaces to meet the needs of domestic and foreign markets;

6.微处理器对充电过程实现智能监控，数字量调节，输出稳定、可靠；The microprocessor realizes intelligent monitoring of the charging process, digital adjustment, and stable and reliable output

7.可通过触摸屏编辑三十个步骤的充电工艺，并可对运行中的工艺参数进行实时在线编辑修改；Thirty step charging process can be edited through the touch screen, and real-time online editing and modification of process parameters during operation can be carried out;

8.智能诊断充电故障，并显示相应的报警信息；Intelligent diagnosis of charging faults and display of corresponding alarm information;

9.具有交流电源相序自适应功能，交流电源掉电自恢复功能；It has the adaptive function of AC power phase sequence and the self recovery function of AC power failure;

10.具有过压、过流、过温、短路保护、脉波缺失、波形不平衡、电源缺相保护功能，避免设备带故障运行造成设备严重损坏。It has functions such as overvoltage, overcurrent, over temperature, short circuit protection, pulse loss, waveform imbalance, and power supply phase loss protection, to avoid serious equipment damage caused by faulty operation of the equipment.



四、设备型号model

型号model	额定电压rated voltage	额定电流rated current	输出回路loops	柜体尺寸(毫米)size	备注remark
DKGCFA	240V	300A	1	2000*1000*800	0~6000A 可选
DKGCFA	240V	700A	1	2000*1200*1000
DKGCFD	360V	60A	6	2200*1200*1000	0~60A可选
DKGCFD	360V	30A	12	2200*1200*1000	0~30A可选
DKGCFD	420V	10A	24	2200*1600*1000	0~15A可选
